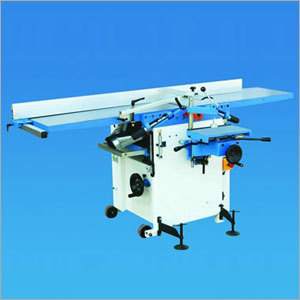

Combined Surface Planer

Combined Surface Planer
Combined Surface Planer
Product Code : RCL36M
Brand Name : WEIHAI RICO MACHINERY
Product Description

We are well established name in industry, engaged in manufacturing, exporting and supplying optimum quality Combined Surface Planer that is extensively used in various industrial applications like surfacing cutting. The offered planner is manufactured at our advanced production unit by utilizing quality approved components with the help of ultra-modern techniques. This Combined Surface Planer is available in different technical specifications to meet the diverse requirements of our esteemed customers at rock bottom prices.

Features:

  • Impeccable performance
  • High efficiency
  • Maintenance free
  • Strong construction

Function:

  • Planing,thicknessing,drilling
  • Strong and constant workpiece feed to thicknesser is granted by te helicoidal infeed roller .
  • Perfect thicknesser finishing with the outfeed roller in sanded steel .
  • Adjustable pressure on the thicknesser feeding rollers depending on the workpiece type to be machined ,for an impeccable result .
  • Long ,heavily ribbed cast iron tables offer precision and stability. Surfing-thicknessing machine, professional ,massive and compact ,for a high-flexible production; ideal for the demanding craftman and carpentry.
  • For mortising unit you can ,on request ,equip your machinery with the horizontal mortiser.

Specifications:

Model

RCL36M

1.1 Surface planer

Arbor diameter

Φ74mm

Arbor speed

5400r/min

Knives specification

360×30×3mm

Max. planing width

350mm

Total length of tables

1700mm

Max. removal

3mm

Guide angle

0-45°

Dust outlet diameter

Φ120mm

1.2 Thickness planer

Max. planing width

350mm

Plan able thickness

6~240mm

Max. removal

3mm

Feeding speed

7.5m/min

Dust outlet diameter

Φ120mm

1.3 Drilling

Drilling diameter

Φ3~16mm

Max. drilling depth

80mm

1.4 The others

Motor power

2.2kW/3KW

Overall dimension

1870×1110×1170mm

weight

305/370kgs

Packing size

1850×760×1050mm
